P160-ZKTeco Palm Recognition, Multi-Biometric T&A Terminal with Access Control Functions

P160-ZKTeco

Overview

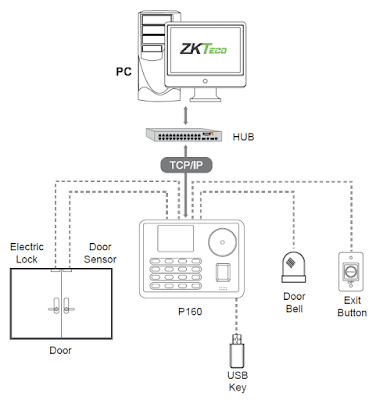

P160 is a multibiometric identification time & attendance and access control terminal, which can connect with third party electric lock, door sensor, and exit button etc.

With the latest palm/fingerprint identification algorithm and streamlined technology, it can hold 600 palm templates and up to 20,000 fingerprint templates without dividing into groups.

Communicating via Wi-Fi, TCP/IP, and USB host, it ensures a smooth connection and data transfer. Amazing verification speed and intuitive operation process make it popular. Elaborately designed and finely processed, it matches your slap-up office perfectly.

Function

• 600 Palms, 3,000 Fingerprints, 10,000 ID cards and 100,000 records.
• Elegant ergonomic design.
• Easy installation.
• TCP/IP, USB-Host and Wi-Fi communication
• POE module/ 3G module/ High (general) level access control module/Battery module/ Printer
• Verification speed less than 1 second
• Professional ZKTeco Palm and fingerprints identification algorithm

Technical Specifications

Display : 2.8-inch TFT Color Display

Palm Capacity  : 600 (Standard)

Fingerprint Capacity : 3,000

ID Card Capacity : 10,000 (Optional)

Logs Capacity : 100,000

Communication : TCP/IP, USB-Host, Wi-Fi(Optional)

Standard Functions

• Automatic Status Switch, Self-Service Query, Work Code, T9 Input, 9 Digit User
• ID, DST, Scheduled-bell,SMS,RS232 Printer
• AC module 1: Exit Button, Door Lock, Alarm,12V OUT,AUX IN

Optional Function

• ID Card, MIFARE Card
• AC module 2 : Exit Button, Door Lock, Alarm,12V OUT, AUX IN, Door Sensor, RS485,
• Wiegand IN/OUT.
• POE, 3G, Battery Module, ADMS

Power Supply : 12V 1.5A

Verification Speed : ≤1 sec

Operating Temperature : 0 - 45 °C

Operating Humidity : 20% - 80%

Dimensions : 179.95 x 134.94 x 38.5 mm

Configuration

P160-ZKTeco Palm Recognition Datasheet
